Introduction to Container Orchestration
Container orchestration automates the deployment, scaling, networking, and management of containerized applications.
Need for Orchestration:
o Managing multiple containers manually is inefficient.
o Ensures high availability, scalability, and fault tolerance.
o Automates load balancing, monitoring, and networking.
Popular Container Orchestration Tools
1. Docker Swarm: Native clustering tool for Docker.
2. Kubernetes (K8s): Industry-standard orchestration platform.
3. Amazon ECS (Elastic Container Service): AWS-managed container service.
4. Google Kubernetes Engine (GKE): Google’s managed Kubernetes service.
5. Azure Kubernetes Service (AKS): Microsoft’s Kubernetes service.

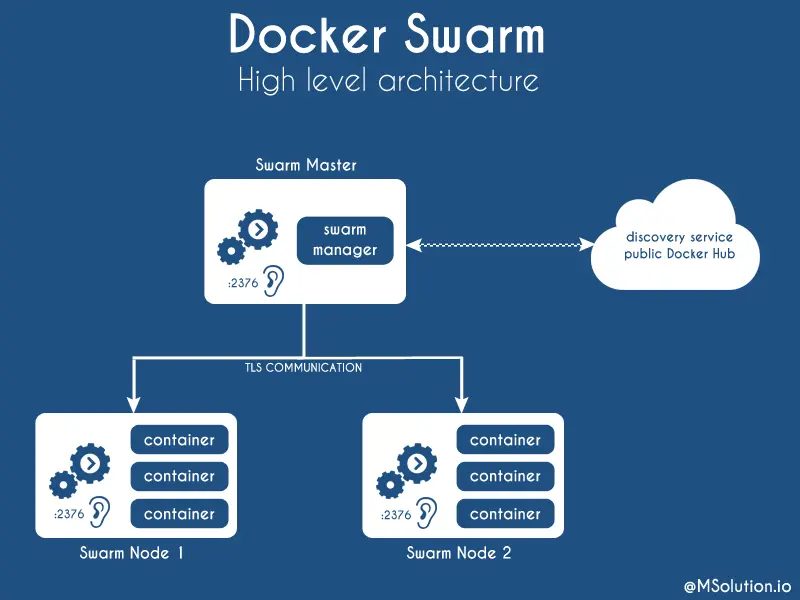

Docker Swarm (Basic Orchestration)
• What is Docker Swarm?
o Built-in orchestration tool for Docker.
o Provides container scheduling, scaling, load balancing, and service discovery.
1. Initializing a Swarm
bash
docker swarm init
• Lists swarm nodes:
bash
docker node ls
2. Deploying Services in Swarm
bash
docker service create –name my_service –replicas 3 -p 8080:80 nginx
• Lists services:
bash
docker service ls
• Scaling services:
bash
docker service scale my_service=5
• Removing services:
bash
docker service rm my_service

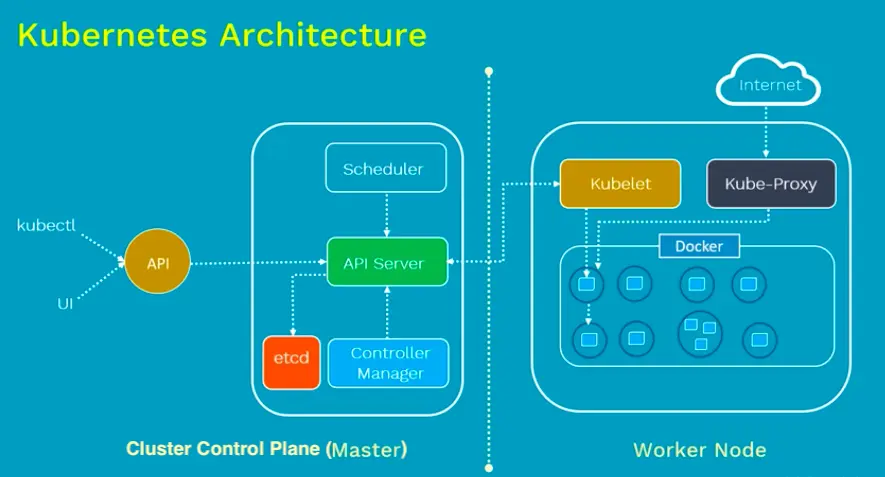

Kubernetes (Advanced Orchestration)
• Why Kubernetes?
o Supports multi-node clustering and advanced networking.
o Handles rolling updates, auto-restarts, and persistent storage.
o Can run on-premise or in the cloud.
• Key Kubernetes Components
1. Pods: Smallest deployable unit containing one or more containers.
2. Nodes: Worker machines that run containers.
3. Deployments: Manages the lifecycle of containers.
4. Services: Exposes applications running on pods to the network.
5. ConfigMaps & Secrets: Store configuration data.
• Deploying an Application on Kubernetes
1. Creating a Deployment:
Yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: my-app
spec:
replicas: 3
selector:
matchLabels:
app: my-app
template:
metadata:
labels:
app: my-app
spec:
containers:
– name: my-container
image: nginx
Apply the deployment:
bash
kubectl apply -f deployment.yaml
2. Exposing the Service:
yaml
apiVersion: v1
kind: Service
metadata:
name: my-service
spec:
type: LoadBalancer
ports:
– port: 80
targetPort: 80
selector:
app: my-app
Apply the service:
bash
kubectl apply -f service.yaml
3. Scaling the Application:
bash
kubectl scale deployment my-app –replicas=5
Comparison: Docker Swarm vs. Kubernetes
| Feature | Docker Swarm | Kubernetes |
|---|---|---|
| Ease of Use | Easy setup | More complex |
| Scaling | Manual or automatic | Advanced auto-scaling |
| Networking | Simple overlay network | Advanced networking with services & ingress |
| Self-Healing | Limited | Fully automated recovery |
| Load Balancing | Built-in | More advanced (Ingress, External Load Balancer) |
Conclusion
• For small-scale applications: Docker Swarm is simple and quick to set up.
• For enterprise-level applications: Kubernetes is preferred due to its advanced features.
• Cloud Integration: Kubernetes integrates with AWS, Azure, and Google Cloud for fully managed orchestration.
