CSS Box Model
The CSS Box Model is a fundamental concept in web design that defines how elements on a web page are structured and spaced. It describes the rectangular boxes generated for elements, including their content, padding, border, and margin. Understanding the Box Model is crucial for controlling the layout and appearance of elements.
Components of the CSS Box Model:

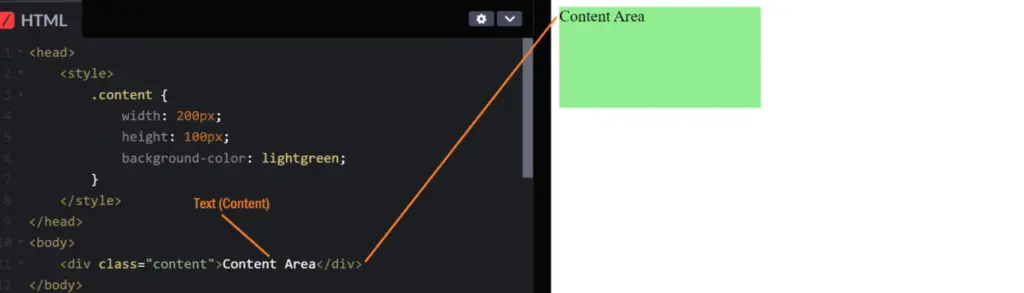

1. Content
The content area is where the actual content of the element (such as text, images, or other elements) is displayed. The size of the content area can be controlled with the width and height properties.
Example:
Output:
In this example:
• <div> is a block-level HTML element used to group content.
• class=”content”: Assigns the CSS class content to this <div>, applying the styles defined in the <style> tag.
• Content Area: This is the text inside the <div>, which will be displayed with the applied styles.

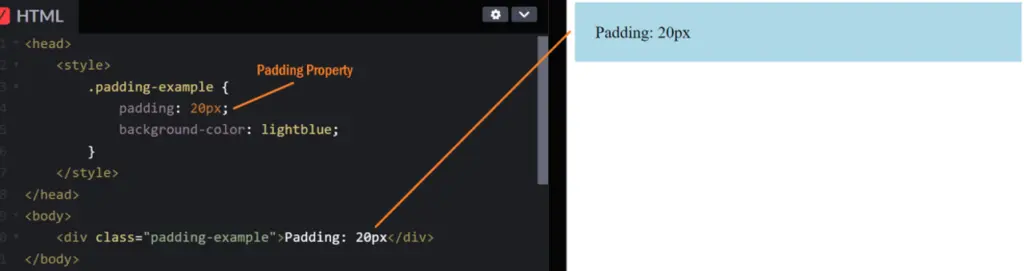

2. Padding
The content area is where the actual content of the element (such as text, images, or other elements) is displayed. The size of the content area can be controlled with the width and height properties.
Example:
<head>
<style>
.padding-example {
padding: 20px;
background-color: lightblue;
}
</style>
</head>
<body>
<div class=”padding-example”>Padding: 20px</div>
</body>
Output:
In this example:
• padding: 20px;: Adds 20 pixels of padding on all four sides (top, right, bottom, and left) inside the element.
• background-color: lightblue;: Sets the element’s background color to light blue.

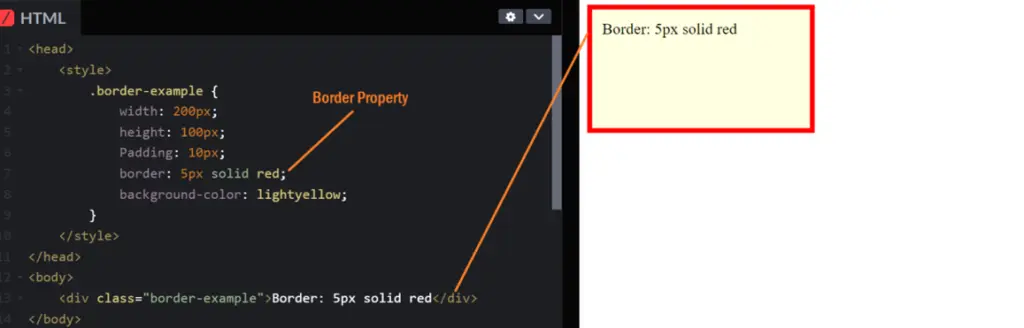

3. Border
The border is a line that wraps around the padding (if any) and content of an element. It can be styled with properties such as border-width, border-style, and border-color.
Example:
<head>
<style>
.border-example {
width: 200px;
height: 100px;
padding: 10px;
border: 5px solid red;
background-color: lightyellow;
}
</style>
</head>
<body>
<div class=”border-example”>Border: 5px solid red</div>
</body>
Output:
In this example:
• width: 200px;: Sets the width of the <div> to 200 pixels.
• height: 100px;: Sets the height of the <div> to 100 pixels.
• padding: 10px;: Adds 10 pixels of space inside the border, between the border and the content.
• border: 5px solid red;: Adds a 5-pixel-wide solid red border around the <div>.
• background-color: lightyellow;: Sets the background color of the <div> to light yellow.

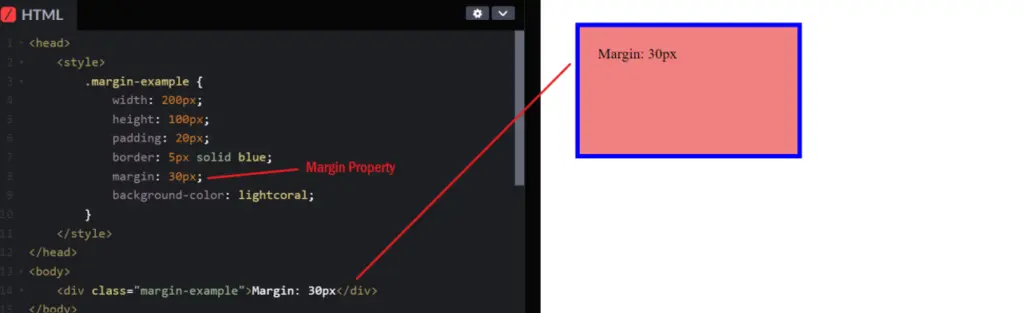

4. Margin
Margin is the space outside the border of an element. It creates distance between the element and other elements or the edges of its container. Margins are set using the margin property.
Example:
<head>
<style>
.margin-example {
width: 200px;
height: 100px;
padding: 20px;
border: 5px solid blue;
margin: 30px;
background-color: lightcoral;
}
</style>
</head>
<body>
<div class=”margin-example”>Margin: 30px</div>
</body>
Output:
In this example:
• width: 200px;: Sets the width of the <div> to 200 pixels.
• height: 100px;: Sets the height of the <div> to 100 pixels.
• padding: 20px;: Adds 20 pixels of space inside the border, between the border and the content. This space is inside the <div>, surrounding the text.
• border: 5px solid blue;: Creates a 5-pixel-wide solid blue border around the <div>.
• margin: 30px;: Adds 30 pixels of space outside the border, creating distance between the <div> and other elements or the edges of its container. This space is outside the <div>, separating it from other content.
• background-color: lightcoral;: Sets the background color of the <div> to light coral.

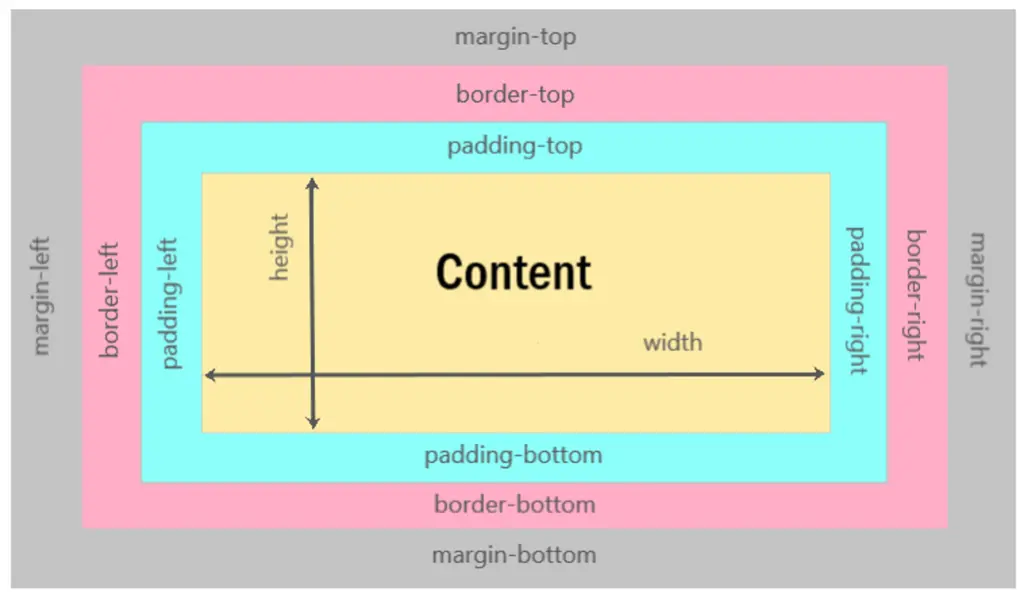

Box Model Diagram
Here’s a simple diagram of the CSS Box Model:
Box-Sizing Property
The box-sizing property affects how the width and height of an element are calculated.
• content-box (default): Width and height apply only to the content area. Padding and border are added outside.
• border-box: Width and height include padding and border, making it easier to control the total size of the element.
Example:
<head>
<style>
.box-sizing-content-box {
box-sizing: content-box; /* Default value */
width: 200px;
padding: 20px;
border: 5px solid black;
background-color: lightblue;
}
.box-sizing-border-box {
box-sizing: border-box;
width: 200px;
padding: 20px;
border: 5px solid black;
background-color: lightcoral;
}
</style>
</head>
<body>
<div class=”box-sizing-content-box”>content-box</div>
<div class=”box-sizing-border-box”>border-box</div>
</body>
Output:
In this example:
1. box-sizing: content-box;: This is the default value. The width and height properties apply only to the content area of the element, not including padding or border.
• width: 200px;: The width of the content area is 200 pixels.
• padding: 20px;: Adds 20 pixels of space inside the content area, between the content and the border.
• border: 5px solid black;: Adds a 5-pixel-wide solid black border around the content and padding area.
• background-color: lightblue;: Sets the background color of the content area to light blue.
2. box-sizing: border-box;: The width and height properties include the content, padding, and border. The dimensions of the element are exactly as specified by the width and height properties.
• width: 200px;: The total width of the element (including padding and border) is 200 pixels.
• padding: 20px;: Adds 20 pixels of space inside the content area, but this space is included within the 200-pixel width.
• border: 5px solid black;: Adds a 5-pixel-wide solid black border around the element, which is also included within the 200-pixel width.
• background-color: lightcoral;: Sets the background color of the content area to light coral.
Box Model Calculation
The total width and height of an element can be calculated as follows:
• Total Width = width + padding-left + padding-right + border-left-width + border-right-width + margin-left + margin-right
• Total Height = height + padding-top + padding-bottom + border-top-width + border-bottom-width + margin-top + margin-bottom
Conclusion
The CSS Box Model is essential for understanding how elements are sized and spaced on a web page. By mastering the Box Model, you can create precise layouts and control the appearance of elements more effectively.
Course Video
YouTube Reference :
1) CSS Box Model In Hindi/Urdu
Practice Scenarios
Scenario 1: Basic Box Model
Objective: Understand how content, padding, border, and margin affect an element’s size and position.
Expected Output: A div element with different sections visible due to different box model properties.
Output:

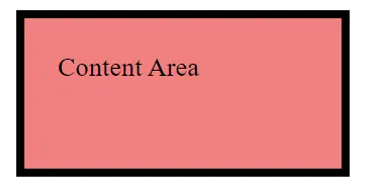

Scenario 2: Box-Sizing Property
Objective: Use the box-sizing property to include padding and borders in the element’s total width and height.
Expected Output: A div element with the specified width and height including padding and border.
Output:

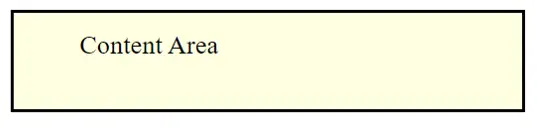

Scenario 3: Padding and Border with Different Values
Objective: Apply different values for padding and borders on each side of an element.
Expected Output: A div element with customized padding and border values on each side.
Output:

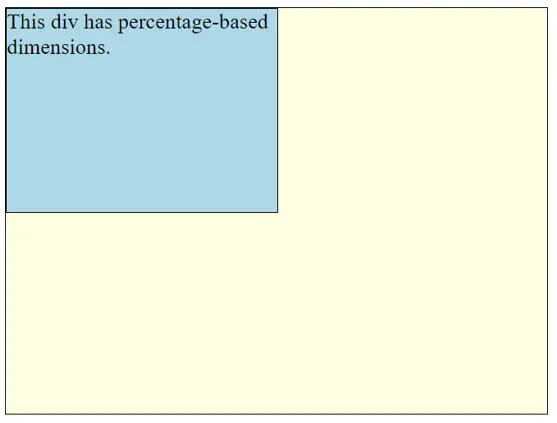

Scenario 4: Percentage-Based Dimensions
Objective: Use percentage values to set the width and height of a div element relative to its parent.
Expected Output: A div element with width and height set as a percentage of its parent element.
<head>
<style>
.parent {
width: 400px;
height: 300px;
border: 1px solid black;
background-color: lightyellow;
position: relative;
}
.child {
width: 50%;
height: 50%;
border: 1px solid black;
background-color: lightblue;
position: absolute;
}
</style>
</head>
<body>
<div class=”parent”>
<div class=”child”>
This div has percentage-based dimensions.
</div>
</div>
</body>
Output:

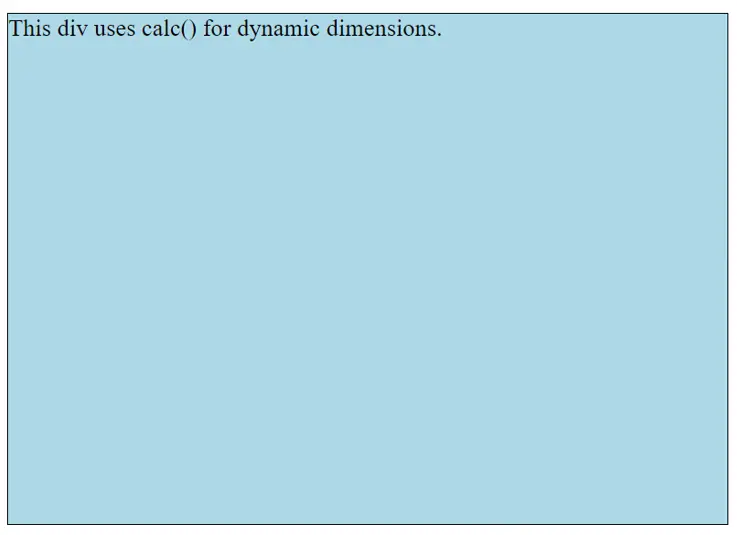

Scenario 5: Using calc() for Dynamic Dimensions
Objective: Use the calc() function to set dimensions dynamically.
Expected Output: A div element with width set as a calculation based on viewport size.
<head>
<style>
.dynamic-dimensions {
width: calc(100% – 40px);
height: calc(100vh – 100px);
border: 1px solid black;
background-color: lightblue;
}
</style>
</head>
<body>
<div class=”dynamic-dimensions”>
This div uses calc() for dynamic dimensions.
</div>
</body>
Output:
Scenario 6: Nested Elements and Box Model
Objective: Observe how nested elements’ padding, border, and margin interact.
Expected Output: A parent div containing a child div, with visible differences in padding, border, and margin.
Output:
