CSS Float
The float property in CSS is used to position an element to the left or right of its container, allowing other content to wrap around it. It’s commonly used for creating text wrapping around images or aligning elements side-by-side.
Common float Values:
1. float: left;
An element with float: left; is moved to the left side of its containing element, and other content will wrap around it on the right.
Example:
Output:

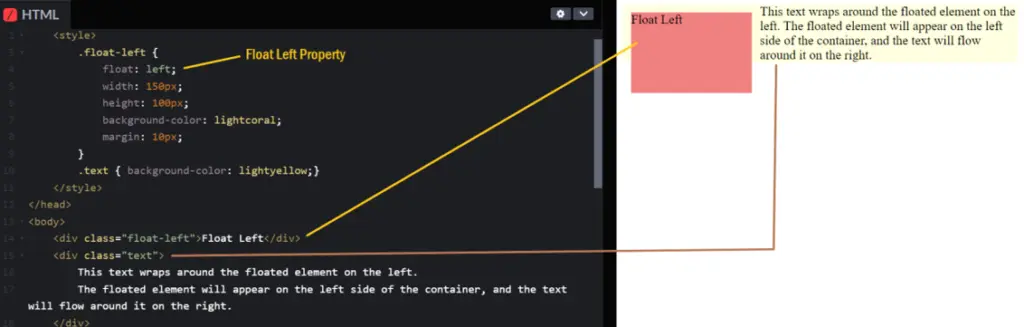

In this example:
The .float-left <div> is floated to the left, causing it to sit on the left side of the container. The .text <div> contains text that wraps around the floated element. The text will flow to the right of the .float-left element, and the .float-left element will be positioned with a 10-pixel margin around it. The .float-left element has a light coral background, and the .text element has a light yellow background.
2. float: right;
An element with float: right; is positioned to the right side of its container, and other content will wrap around it on the left.
Example:
<head>
<style>
.float-right {
float: right;
width: 150px;
height: 100px;
background-color: lightblue;
margin: 10px;
}
.text {
background-color: lightgray;
}
</style>
</head>
<body>
<div class=”float-right”>Float Right</div>
<div class=”text”>
This text wraps around the floated element on the right.
The floated element will appear on the right side of the container, and the text will flow around it on the left.
</div>
</body>
Output:
In this example:
The .float-right <div> is floated to the right side of its container, meaning it will appear on the right side of the page or container, and the surrounding text will flow around it on the left. The .text <div> contains the text that wraps around the floated element. The floated element has a light blue background and a 10-pixel margin, while the text container has a light gray background.
3. float: none;
Setting float: none; removes the floating effect, and the element will be positioned according to the normal document flow.
Example:
<head>
<style>
.float-none {
float: none;
width: 150px;
height: 100px;
background-color: lightgreen;
margin: 10px;
}
.text {
background-color: lightgoldenrodyellow;
}
</style>
</head>
<body>
<div class=”float-none”>Float None</div>
<div class=”text”>
This text does not wrap around the element as it is not floated.
The element will be positioned according to the normal document flow.
</div>
</body>
Output:

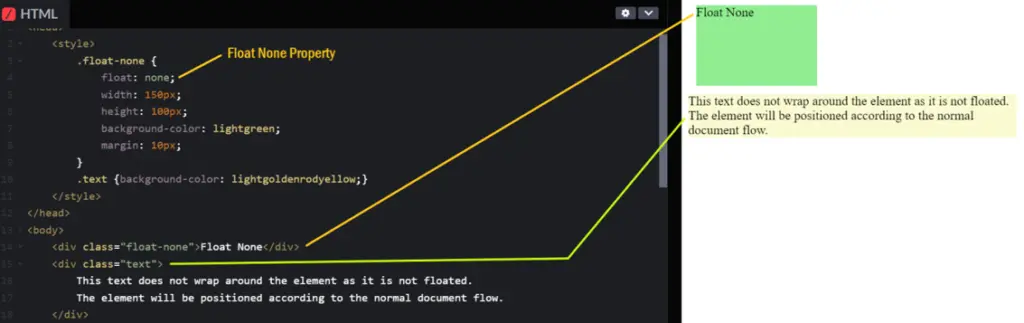

In this example:
The .float-none <div> is not floated and is positioned according to the normal flow of the document. This means it will simply follow the order in which it appears in the HTML. The surrounding text in the .text <div> will be displayed below the .float-none <div>, without wrapping around it. The .float-none <div> has a light green background and a 10-pixel margin, while the .text <div> has a light goldenrod yellow background.
Clearing Floats
Floats can sometimes cause layout issues, especially when an element is floated and other content appears underneath it. To handle these issues, you can use the clear property to ensure that elements are displayed correctly after floated elements.
Common clear Values
1. clear: left
Forces the element to move below any floating elements on the left.
Example:
<head>
<style>
.float-left {
float: left;
width: 150px;
height: 100px;
background-color: lightcoral;
margin: 10px;
}
.clear-left {
clear: left;
width: 200px;
height: 100px;
background-color: lightgreen;
}
</style>
</head>
<body>
<div class=”float-left”>Float Left</div>
<div class=”clear-left”>Clear Left</div>
</body>
Output:

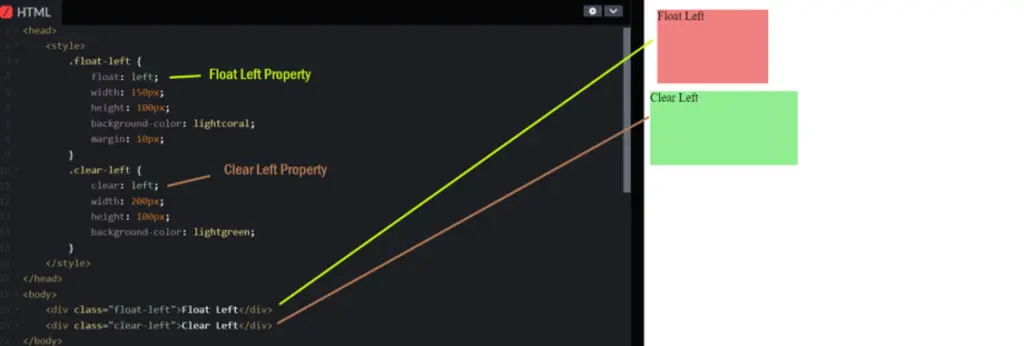

In this example:
The .float-left <div> floats to the left side of its container and has a light coral background with a 10-pixel margin. The .clear-left <div> uses clear: left to ensure it does not sit alongside the floated element but instead starts on a new line below it. This results in the .clear-left <div> being positioned directly beneath the .float-left <div>, with a light green background.
2. clear: right
Forces the element to move below any floating elements on the right.
Example:
<head>
<style>
.float-right {
float: right;
width: 150px;
height: 100px;
background-color: lightblue;
margin: 10px;
}
.clear-right {
clear: right;
width: 200px;
height: 100px;
background-color: lightcoral;
}
</style>
</head>
<body>
<div class=”float-right”>Float Right</div>
<div class=”clear-right”>Clear Right</div>
</body>
Output:
In this example:
The .float-right <div> is floated to the right side of its container, with a light blue background and a 10-pixel margin around it. The .clear-right <div> uses clear: right to ensure that it does not align next to the floated element but rather appears on a new line below it, with a light coral background. This ensures that the .clear-right element is positioned correctly below the floated .float-right element.
3. clear: both
Forces the element to move below any floating elements on both the left and right.
Example:
<head>
<style>
.float-left {
float: left;
width: 150px;
height: 100px;
background-color: lightcoral;
margin: 10px;
}
.float-right {
float: right;
width: 150px;
height: 100px;
background-color: lightblue;
margin: 10px;
}
.clear-both {
clear: both;
width: 200px;
height: 100px;
background-color: lightgreen;
}
</style>
</head>
<body>
<div class=”float-left”>Float Left</div>
<div class=”float-right”>Float Right</div>
<div class=”clear-both”>Clear Both</div>
</body>
Output:

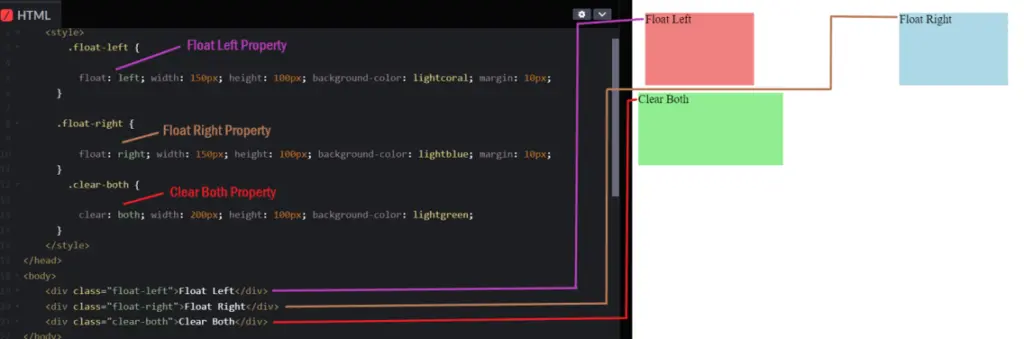

In this example:
• The .float-left <div> floats to the left with a light coral background.
• The .float-right <div> floats to the right with a light blue background.
• The .clear-both <div> uses clear: both to ensure that it is positioned below both floated elements, with a light green background. This layout effectively separates the .clear-both <div> from the floated elements, ensuring a clean break and starting on a new line.
Conclusion
The float property is a powerful tool for positioning elements and creating layouts with content wrapping. However, it is often used in combination with other CSS properties and techniques, such as clear and clearfix, to manage layout issues and maintain a clean design.
Course Video
YouTube Reference :
Practice Scenarios

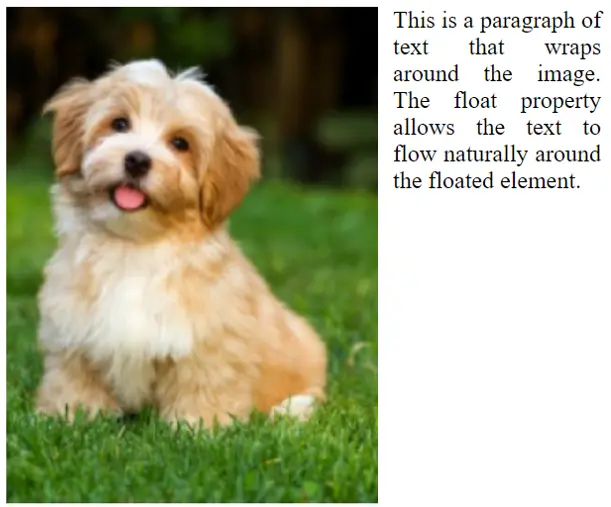

Scenario 1: Floating an Image to the Left
Objective: Float an image to the left of a paragraph, allowing the text to wrap around it.
Expected Output: The image should appear on the left, with the paragraph text wrapping around the right side of the image.
Output:

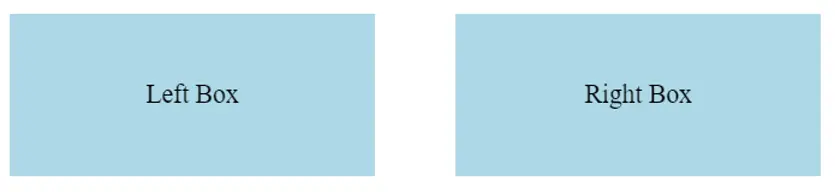

Scenario 2: Floating Two Elements Side by Side
Objective: Float two div elements side by side within a container.
Expected Output: Two blocks should be positioned next to each other horizontally.
Output:

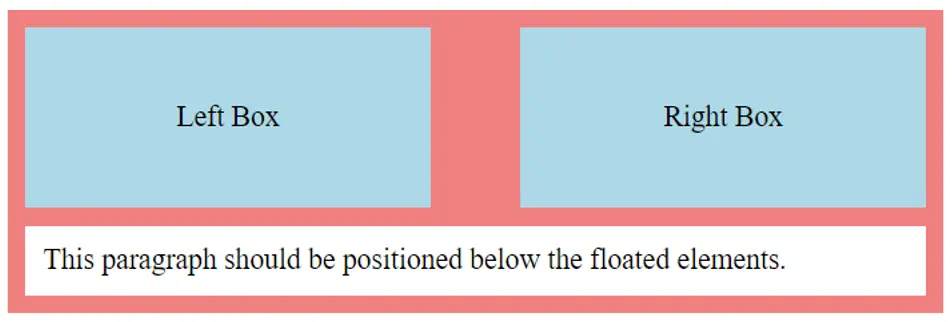

Scenario 3: Clearing Floats
Objective: Clear the floats to ensure that subsequent content doesn’t wrap around the floated elements.
Expected Output: The “Clearfix” div will start below the floated elements, and the background color of the container will wrap around the entire content.
Output:
Scenario 4: Floating Navigation Menu
Objective: Create a horizontal navigation menu by floating the list items.
Expected Output: The list items should appear side by side, forming a horizontal navigation menu.
Output:

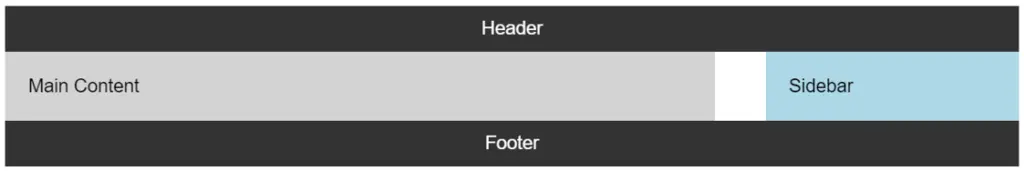

Scenario 5: Complex Layout with Floats
Objective: Create a complex layout with a header, two columns, and a footer using floats.
Expected Output: The header should be on top, two columns should be side by side, and the footer should be below both columns.
Output:
